ATS

Home ProductsATS

Overview

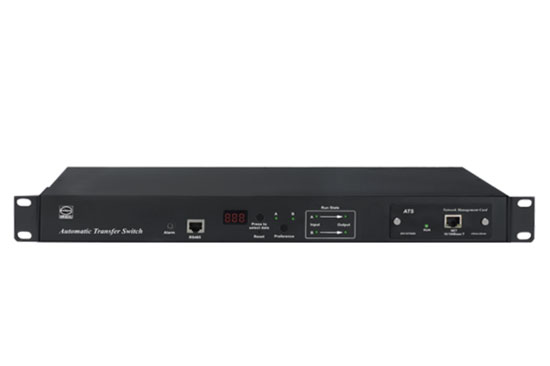

Clever ATS provides high reliable, redundant power to single-corded equipment in your server cabinets. User can easily upgrade the Basic ATS to an intelligent one with the provided Network Management Card. The Intelligent ATS will be able to monitor power utilization at the input level to prevent tripped breakers.

    Reliable Transfer Switch

    Reliable, Seamless Automatic Power Transfer Switching. LED Indicators show active power source.

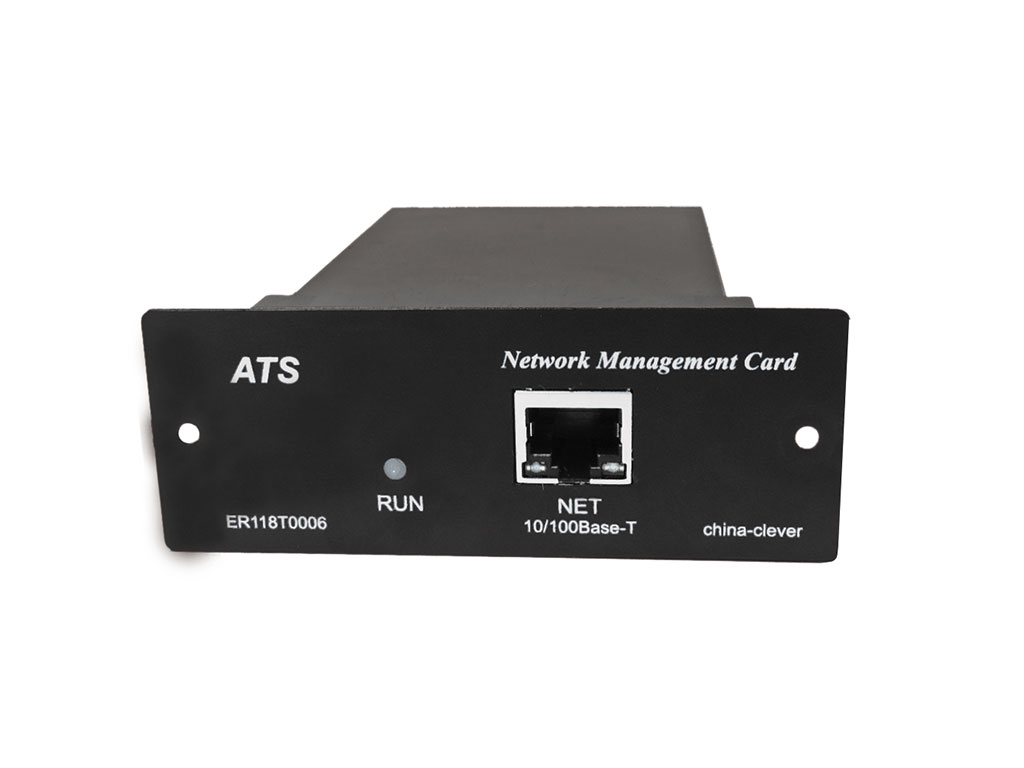

    Hot-swap NMC module

    ATS has a hot-swap network management card which enable you to upgrade the Basic ATS to a Intelligent One without affecting the outlet states.

    Web-based Remote Power Monitoring

    Real-time remote power quality monitoring with user define-able thresholds and alerts for voltage and current. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time.

    Wide range of input and output connections

    includes A variety of input and output connections to distribute power to multiple outlets including IEC320 C13/C19 and Industrial connectors. Having a variety of inputs and outputs allow users to adapt to varying power requirements.

    Model Category Socket No. Rating Input Plug Output Plug

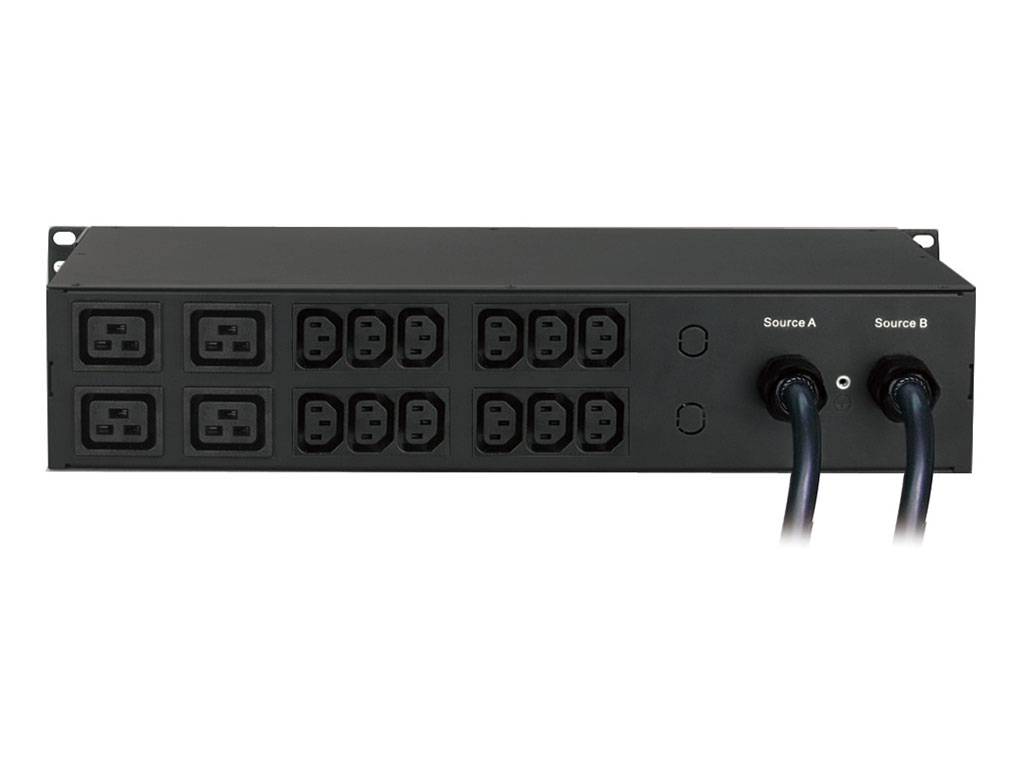

    PDU-C-C1306-C1902-ATS-C2002 ATS 6+2 16A IEC320 C20 IEC320 C13 & C19

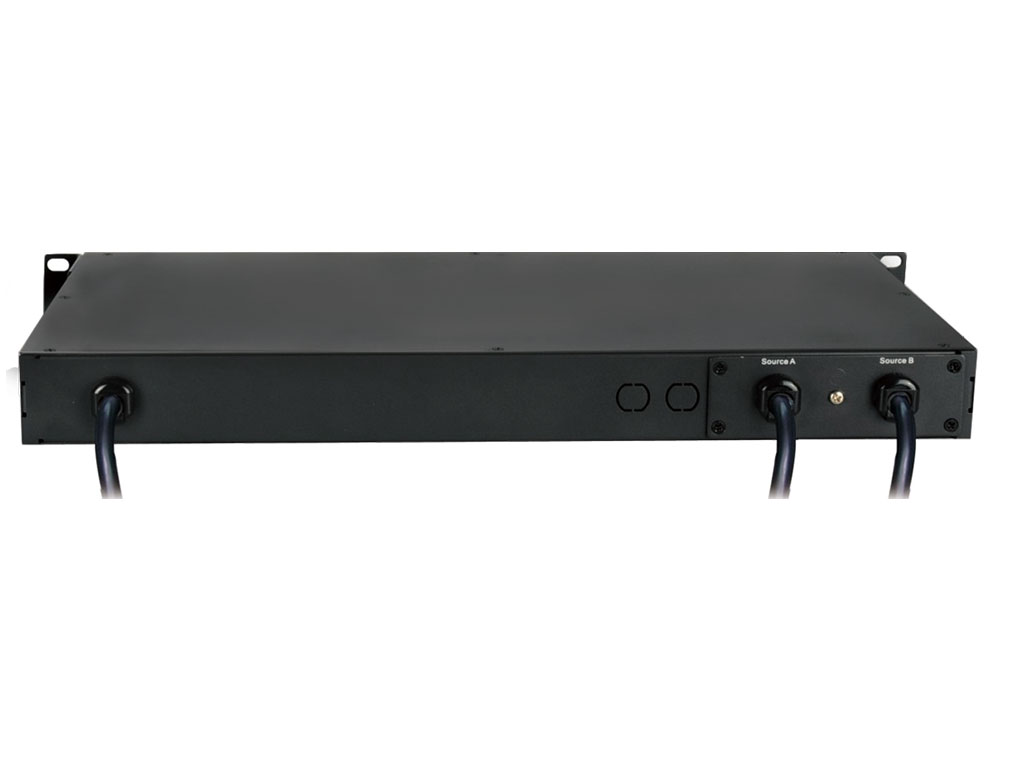

    PDU-C-E1601-ATS-E1602 ATS 1 16A Dual IEC60309 16A IEC60309 16A Cee Form ( Female )
    PDU-C-E3201-ATS-E3202 ATS 1 32A Dual IEC60309 32A IEC60309 32A Cee Form ( Female )
